High Breathable TPU Film has excellent high tension, high tensile strength, toughness and aging resistance
The main function of High Breathable TPU Film
1: Balance the pressure to prevent air and moisture around the seal from entering the body to protect the seal integrity.
2: High Breathable TPU Film protects parts from the weather and can withstand the immersion of water and other liquids.
3: The protected parts are easy to clean, free from corrosive pollutants, and ensure the performance and service life of the parts.
4: High Breathable TPU Film can protect against UV rays, has strong chemical inertness and is resistant to temperature.
5: Thin and light, with good concealment, convenient for design and production, ideal for waterproof and breathable
High Breathable TPU Film Data Sheet
| Item | Test Method | Unit | HighBreathability | High Breathability | High Breathability |
| Color | VISUAL TEST | Clear | Matt | Milk White Matt/any colors | |
| Thickness | TAPELINE | mm | 0.012-0.050 | 0.012-0.050 | 0.012-0.050 |
| Specific Gravity | ASTM D882 | g/cm3 | 1.22 | 1.22 | 1.25 |
| Elongation | ASTM D882 | % | >=450 | >=450 | >=450 |
| Moisture permeability | ASTM E96 BW2000 | g/cm2×24hrs | 8000-10000 | 8000-10000 | 8000-10000 |
| Water-resistant ATM | JIS L1092 | mmH2O | >10000 | >10000 | >10000 |
| Tensile Strength | ASTM D882 | MPa | 40-60 | 40-60 | 40-60 |
| PE bottom liner | YES | YES | YES |
General Explaination:The newest discount of this cheap TPU film breathable membrane for laminate which is manufacturer of Xin Gen brand. This cheap TPU film breathable membrane for laminate was specical designed for customer who want to use for clothing, mattress, kite bladder, water bladder, water ball, lifebuoy and so on.Cause the page size is limited, we inevitably make the information incomplete, any doubt or issure, pls feel free to contact us, it will help us to optimize information in this page. Thank you in advance. In order to promote your feedback and better service all customers, we will give 5% discount to customer who give us some advices of the publicity page of cheap TPU film breathable membrane for laminate.Our contact information in the bottom.
| Product name | TPU film tpu textile breathable membrane for laminate fabric |
|---|---|
| Product type | TPU film,Polyurethane film, Polyester-based |
| Surface | Smooth |
| Color | Clear, foggy, white, Black and other colors |
| Thickness | 0.012mm - 0.05mm |
| Width | Any width can be customization |
| Hardness | In general, 85A, but it also could be customization |
| Anti - UV | 4 - 4.5 grade |
| Anti - yellow | 3.5 grade |
| Meter / Kg | It depends on your thickness and width |
| Kg / roll | In general, 30kg/roll, but it also depends your quantity. |
| Feature | High elasticty, waterproof, oil resistance, anti - tear, Eco - friendly |
| Melt point | 105 ℃ - 170 ℃ |
| Certification | Oeko - tex, SGS |
inventory waterproof and breathable polyurethane film
1) Our clear matt polyurethane waterproofing coating and white matt polyurethane waterproofing coating for clothing fabric has strong power in waterproofing.
2) Any thickness, width, hardness and color can be customization.
3) As a manufacturer, we have the confidence to meet any requirement of inventory waterproof and breathable polyurethane film from you.
4) We would like to provide free samples by express with collected service for your testing before we start the first order.
5) Looking forward to your contacts, waiting for your detailed requirement or question. Our professional sales and R&D department always be ready to answer you within 24 hours.

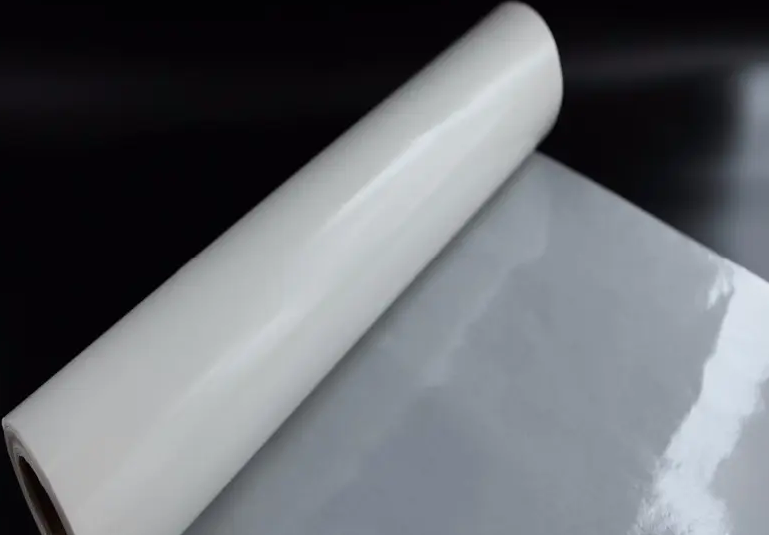

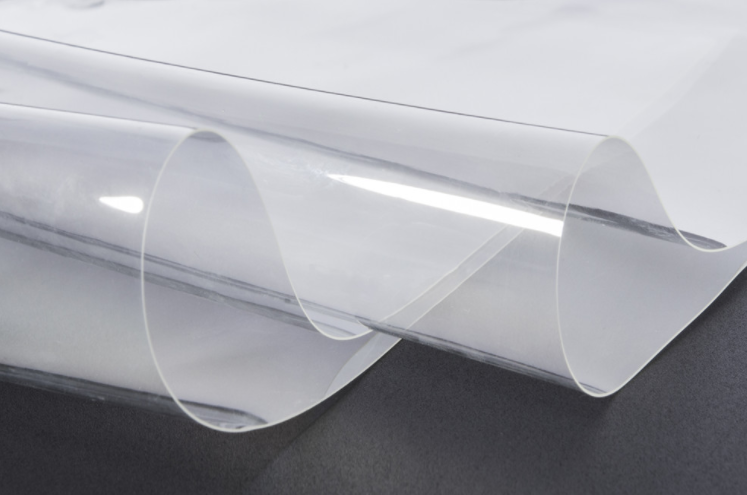

Product Image
● TPU Film 、TPU Hotmelt Adhesive Film、TPU Lamination Fabric、TPU Bulletproof Film、TPU Blowing Film
● TPU Tapes/Mobilon Tapes 、TPU Synthetic Leather 、 TPU Tubing 、TPU Tapes、 Car Ppf Film
XIN GEN specializes in the R&D and production of high-end TPU products, the products have been widely sold in the international market, it’s application covers clothing textile, outdoor products, luggage and shoe materials, packaging industry, electronics industry. advertising industry, automobile industry, medical industry and other industrial applications.
Main Certificate:
SO9001:2015, OHSAS18001:2007, OEKO-TEX, SGS, ROHS, REACH, EU 10_ 2011 and other third-party certification agencies
certification.The factory has a research and development center and a product laboratory to ensure the quality of products. All employees of XIN GEN are united and committed to the company's mission,vision and values, and contribute to the environmentally friendly green life of customers, society and all mankind.
